Thermostat

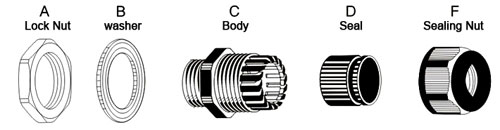

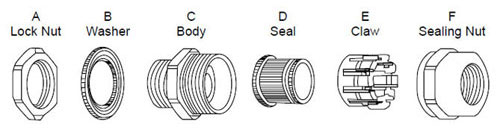

| Material: | A. C. E and F for UL approved Nylon PA66 (Flammability UL 94V-2), B and D for NBR rubber. |
| Thread: | PG, M, NPT, MG |
| Temperature Range: | -40°C to +100°C |

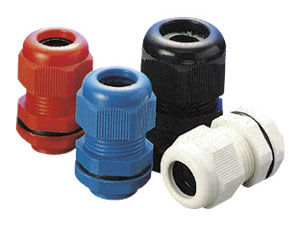

| Color: | Blue, Red, Black, Yellow, Grey, White |
| Protection Class: | IP 68 |
| Features: | The claws and seals of excellent design, can hold cable firmly and have a wider cable range. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
Type |
 |
 |
 |
 |
 |
 |
Remark |
| Divided/ Long thread | MG12X1.5 | 5.3-3 | 18/15 | 15 | |||
| 7-3.5 | 18/15 | 15 | |||||
| MG16X1.5 | 7-4 | 22/22 | 15 | ||||
| 10-6 | 22/22 | 15 | |||||
| MG20X1.5 | 8-5 | 24/24 | 15 | ||||
| 12-7.5 | 24/24 | 15 | |||||
| 10.5-6.5 | 27/27 | 15 | |||||
| 14-8.5 | 33/33 | 15 | |||||
| MG25X1.5 | 16.5-11 | 33/33 | 15 | ||||
| MG32X1.5 | 18-12.5 | 33/33 | 15 | ||||
| 22-16 | 41/41 | 15 | |||||
| 25-18 | 41/41 | 15 | |||||
| MG40X1.5 | 32.5-24 | 50/50 | 15 | ||||
| MG50X1.5 | 41-30 | 62/62 | 20 | ||||
| MG63X1.5 | 54-40 | 75/75 | 20 | ||||
| MG90X1.5 | 77-66 | 110/110 | 25 |
Type |
|
|
|
|
|
|
Remark |
|
United |
PG | PG7 | 3-6.5 | 15 | 8 | |||
| PG9 | 4-8 | 19 | 8 | |||||
| PG11 | 5-10 | 22 | 8 | |||||
| PG13.5 | 6-12 | 24 | 9 | |||||
| PG16 | 10-14 | 27 | 10 | |||||
| PG18 | 12-16 | 27 | 11 | |||||
| PG21 | 13-18 | 33 | 11 | |||||
| PG25 | 14-21 | 36 | 12 | |||||
| PG27 | 15-23 | 38 | 12 | |||||
| PG29 | 18-25 | 42 | 11 | |||||
| PG36 | 22-32 | 53 | 13 | |||||
| PG42 | 32-38 | 60 | 13 | |||||
| PG48 | 37-44 | 65 | 14 | |||||
| PG63 | 40-50 | 75 | 29 | |||||
 PG Flange |
PGF11 | 5-10 | 22 | 25 | 8 | |||
| PGF13.5 | 6-12 | 24 | 27 | 9 | 2000pcs | |||
| PGF16 | 10-14 | 27 | 28 | 10 | ||||
| NPT | 3/8"NPT | 4-8 | 19 | 26 | 15 | |||
| 3/8"NPT | 2-6 | 19 | 26 | 15 | ||||
| 1/2"NPT | 6-12 | 24 | 30 | 13 | ||||
| 1/2"NPT | 5-9 | 24 | 30 | 13 | ||||
| 3/4"NPT | 13-18 | 33 | 37 | 15 | ||||
| 3/4"NPT | 9-16 | 33 | 37 | 15 | ||||
| 1"NPT | 18-25 | 41 | 40 | 16 | ||||
| 1"NPT | 13-20 | 41 | 40 | 16 | ||||
